When it comes to maintaining and restoring pipelines, Cured-In-Place Pipe (CIPP) repair stands out as a revolutionary and efficient method. CIPP repair provides a trenchless solution to fix damaged pipes, eliminating the need for extensive digging and reducing disruption. This step-by-step guide will walk you through the CIPP repair process, explaining how it works and why it’s a preferred choice for pipeline rehabilitation. By understanding each phase, you can appreciate the benefits and effectiveness of this modern repair technique.
Understanding CIPP Repair

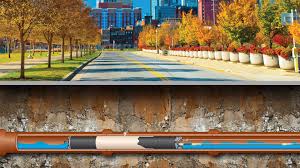

CIPP repair involves inserting a flexible liner coated with resin into a damaged pipeline. This liner is then inflated and cured, creating a new pipe within the old one. The result is a seamless, durable, and long-lasting solution to pipeline problems. CIPP repair is used for various types of pipelines, including sewer lines, stormwater drains, and industrial pipes. Its versatility makes it an ideal choice for many repair scenarios.
Step 1: Initial Inspection and Assessment
The first step in the CIPP repair process is a thorough inspection and assessment of the existing pipeline. This is typically done using CCTV cameras that are inserted into the pipe. These cameras provide a clear view of the pipe’s interior, allowing technicians to identify the extent of the damage, locate any blockages, and assess the overall condition of the pipeline. This information is crucial for determining if CIPP repair is the appropriate solution and for planning the repair process.
Step 2: Cleaning the Pipeline
Once the inspection is complete and CIPP repair has been deemed suitable, the next step is to clean the pipeline. This is an essential part of the process, as a clean surface ensures that the liner will adhere properly to the pipe walls. High-pressure water jets are commonly used to remove debris, scale, grease, and any other obstructions from the pipe. In some cases, mechanical cleaning tools may be used to tackle more stubborn deposits. Thorough cleaning is vital for the success of the CIPP repair.
Step 3: Preparing the Liner
With the pipeline cleaned and ready, the next step is to prepare the CIPP liner. The liner is typically a flexible, felt-like material that is impregnated with a thermosetting resin. This resin is what will eventually cure and harden to form the new pipe. The liner is cut to the appropriate length, taking into account the section of the pipe that needs to be repaired. Careful measurement and preparation are crucial to ensure a precise fit.
Step 4: Inserting the Liner
The prepared liner is then inserted into the damaged pipeline. This is usually done using a technique known as inversion, where the liner is turned inside out as it is pushed into the pipe. This inversion process ensures that the resin-coated side of the liner is pressed against the interior walls of the existing pipe. Water or air pressure is used to facilitate the insertion and to ensure that the liner expands and conforms to the shape of the pipe.
Step 5: Inflating the Liner
Once the liner is in place, it is inflated to press it firmly against the interior walls of the existing pipe. This inflation process ensures that the liner fully conforms to the pipe’s shape, including any bends, joints, or irregularities. The goal is to create a seamless, continuous lining that will form the new pipe. Inflation is typically achieved using air or water pressure, and the pressure is carefully controlled to ensure an even fit.
Step 6: Curing the Resin
The next step is to cure the resin, transforming the flexible liner into a hard, durable pipe. There are several methods for curing the resin, including hot water, steam, or ultraviolet (UV) light. The choice of curing method depends on factors such as the type of resin used and the specific conditions of the repair. During the curing process, the resin undergoes a chemical reaction that causes it to harden and bond to the existing pipe, creating a strong and long-lasting repair.
Step 7: Final Inspection
After the resin has cured and the new pipe has formed, a final inspection is conducted to ensure the success of the repair. CCTV cameras are used once again to inspect the interior of the pipeline and verify that the liner has fully adhered to the pipe walls and that there are no defects or issues. This final inspection is crucial for confirming the quality and effectiveness of the CIPP repair.
Benefits of CIPP Repair
The CIPP repair process offers several significant advantages over traditional pipeline repair methods:
1. Minimal Disruption
Because CIPP repair is a trenchless method, there is no need for extensive digging or excavation. This means less disruption to traffic, businesses, and daily activities. The process is much less invasive, making it an ideal choice for urban areas and locations with limited access.
2. Cost-Effective
CIPP repair is often more cost-effective than traditional methods. Since there is no need for extensive excavation, labor and material costs are significantly reduced. Additionally, the quicker installation process means less downtime, further lowering overall costs.
3. Durability and Longevity
The new pipe created through CIPP repair is highly durable and resistant to corrosion, root intrusion, and other common pipeline issues. This extends the lifespan of the repaired pipeline, reducing the need for future repairs and maintenance.
4. Environmental Benefits
CIPP repair is an environmentally friendly solution. The trenchless nature of the process minimizes soil disruption and the associated environmental impact. Additionally, the reduced need for new materials and disposal of old pipes contributes to sustainability.
5. Versatility
CIPP repair can be used on a wide range of pipe materials, including clay, concrete, PVC, and cast iron. It is suitable for various types of pipelines, including sewer lines, stormwater drains, and industrial pipes.
Conclusion
CIPP repair is a revolutionary method for restoring damaged pipelines. Its trenchless approach, cost-effectiveness, durability, and environmental benefits make it an ideal solution for a wide range of pipeline issues. As technology continues to advance, CIPP repair will likely become even more prevalent, providing a reliable and efficient way to maintain and restore critical pipeline infrastructure.
Whether you are a homeowner dealing with a damaged sewer line or a municipality looking to upgrade aging infrastructure, CIPP repair offers a modern, effective solution. By choosing CIPP repair, you can ensure the longevity and reliability of your pipelines, minimizing disruption and maximizing value. Read More
